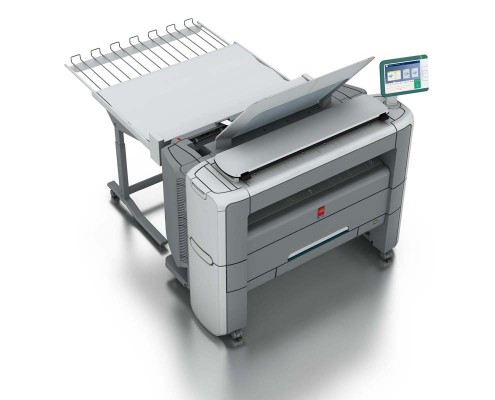

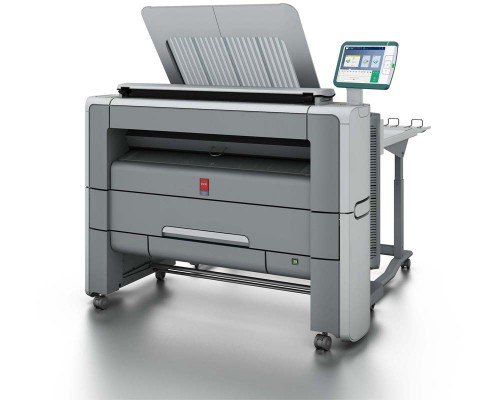

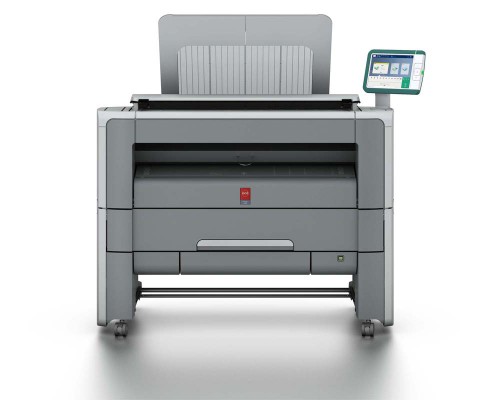

Océ PlotWave 345/365 Printing Systems


Large Format Technical Document Management with Advanced Security Options

  • Highly configurable 1 or 2 roll large format printer and copier with optional integrated 600 dpi color/mono scanner.
  • The Océ PlotWave 345 / 365 large format printer is available in a space saving single-footprint design.
  • The top delivery tray incorporates air separation technology and neatly collates and stacks up to 50 E-size plots.
  • Portfolio of security options for the printing system includes disk encryption, access management, and a removable hard drive.
Stacking systems (standard) Integrated Top Delivery Tray. Up to 50 sheets E-size/A0 capacity
Fast Print Speed Print speed up to 4 ppm D-size/A1 (Océ PlotWave 345 printer),
up to 6 ppm D-size/A1 (Océ PlotWave 365 printer)
1-click printing from USB
1-click printing from Océ Smart Inbox or last send job (Océ SmartAccess)
Instant start-up due to Océ Radiant Fusing technology
Accelerated first print out time from
standby mode (D-size/A1)
30 seconds
Accelerated first copy out time from
standby mode (D-size/A1)
35 seconds
Average first print out time from
sleep mode (D-size/A1)
40 seconds (including 1-click USB printing, file processing, top delivery)
Scan Resolution 600 x 600 dpi. Selectable Resolutions: 100, 200, 300, 400, or 600 dpi.
Scan Speed Monochrome: Up to 47.9’/min (14.6 m/min)

Copying: Up to 31.8’/min (9.7 m/min)

Color: Up to 15.7’/min (4.8 m/min)

Scan Formats TIFF, PDF, PDF/A, JPEG, CALS, multi-page PDF, multi-page PDF/A, and multi-page TIFF
Original Width Minimum: 8.2” (208 mm) Maximum: 36″ (914 mm)
Original Length Minimum: 8.2″ (208 mm) Maximum: 52.5′ (16 m
Original Thickness Maximum 0.03″ (0.8 mm), non-rigid documents
Scanner Dimensions (W x D x H) 43″ x 12″ x 5.5″ (1,097 x 308 x 140 mm)
